Mini-Pleat (V4-Bank Filters)

Mini-Pleat (V4-Bank Filters)
contact now
Product Detail

The Mini-Pleat (V4-Bank filters) are lightweight, easy to install and built with close  pleat technology ensuring a large media area to  efficiently remove contaminants from the air stream. The  Extended Surface Filters are with a nominal frame of the  size of 24" x 24" x 12” results in lower energy costs to  the users. The media is moisture resistant up to 100%  relative humidity.

The Mini-Pleat (V-bank) air filters  are classified by Underwriters Laboratories as per UL  Standard 900 Class2. In addition, the filters are tested  for the Particle Efficiency according to Eurovent  4/9-1993 or ASHRAE 52.2P when the efficiency grade is  below H10. H10 filters are tested for the MPPS  efficiency.


Features:

  • Low pressure drop

  • Moisture resistant

  • Highly durable 100% synthetic media

  • Lightweight and easy to install

  • UL Standard 900 Class 2

  • ASHRAE Test 52.1 and 52.2


Specifications

Frame: Plastics Efficiency: F8(EN779) 90-95%
Media: Synthetic fiber F9(EN779) ≥95%
Maximum temperature: 80 ℃
H10(MPPS)≥85%
Recommended final pressure drop:
Separator: Hot-melt glue
Humidity: ≤100%


Construction:

    The frames of our Mini-Pleat V4-bank air filters are of plastic construction, and our media is durable and moisture resistant up to 100% relative humidity.  The V-bank design results in low resistance and reduced energy costs.



Application:
Larger variations are allowed in air flow and pressure drop without affecting filter performance and efficiency. It is ideal for HVAC constant volume applications.

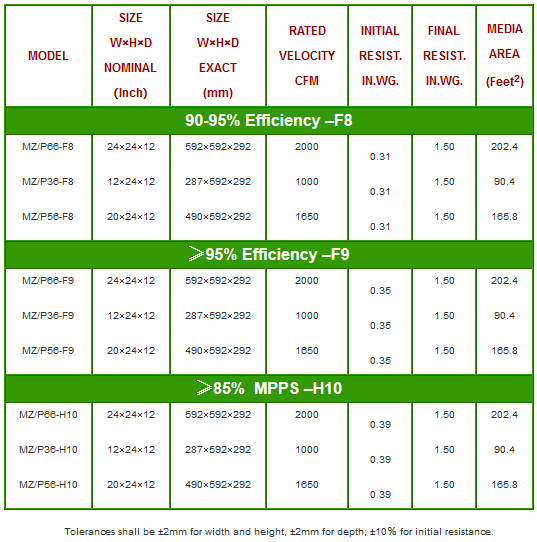

Technical Data:


Construction:

The frames of our Mini-Pleat V4-bank air filters are of plastic construction, and our media is durable and moisture resistant up to 100% relative humidity.  The V-bank design results in low resistance and reduced energy costs.


Application:
Larger variations are allowed in air flow and pressure drop without affecting filter performance and efficiency. It is ideal for HVAC constant volume applications.

Technical Data:

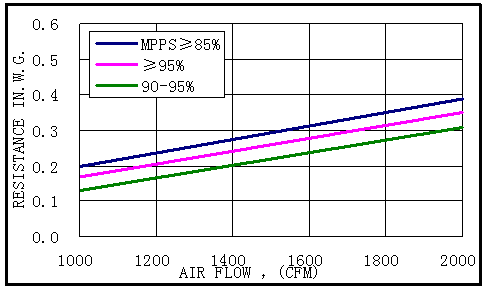

STANDARD PRESSURE DROP
Test Filter Size 24”× 24”× 12”,Nominal



MINIMUM PARTICLE SIZE EFFICIENCY
T
est Filter Size 24”× 24”× 12”,Nominal
